Hyperloop One Successful Full-Scale Test

The first all systems test of the Hyperloop One in the Nevada Desert test area has been labelled a success after the Hyperloop sled achieved levitation and speeds of 112km per hour, signifying the viability of the technology.

Hyperloop One Successful Full-Scale Test

Hyperloop One, a technology company aiming to build Elon Musk’s Hyperloop, announces its first ever full-scale system test was a success. While the company still has a great amount of work to do before it can launch passenger-pods through tubes at supersonic speeds, Hyperloop One was able to levitate the moving test prototype over the huge track, in what co-founders Josh Giegel and Shervin Pishevar describe as a “kitty hawk’ moment.

Hyperloop One Successful Full-Scale Test

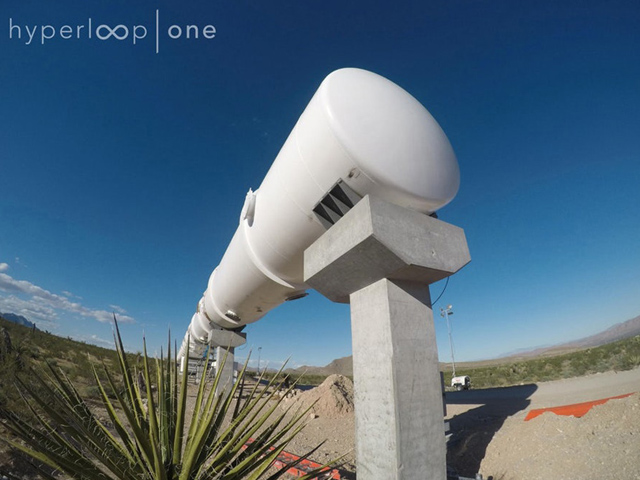

Hyperloop One’s vision is to one day establish networks of vacuum-like tubes that shuttle passengers and cargo pods at close to the speed of sound. The Hyperloop system could make it possible for long distance travel to be undertaken in a fraction of current times. In March this year, the California-based company revealed its full-scale test track in the Nevada Desert, and it is also conducting feasibility studies with governments in Dubai, Russia, and Finland.

Hyperloop One’s first full-systems-test took place in a private setting on May 12, 2017. The practice sled reached 112 km per hour which is a small fraction of the top speed of 400km per hour projected for the Hyperloop technology, however, the test run did see the team test all of the system’s components together for the first time; including the motor, vehicle suspension, magnetic levitation technology, and vacuum pumping system.

Hyperloop One Successful Full-Scale Test

The sled levitated above the track for 5.3 seconds using magnetics, reaching almost 2Gs of acceleration while hitting the target speed of 112km per hour. When the test took place, the team reduced the pressure inside the test tube to around five pascals, which it says made it the fourth-largest vacuum chamber in the world.

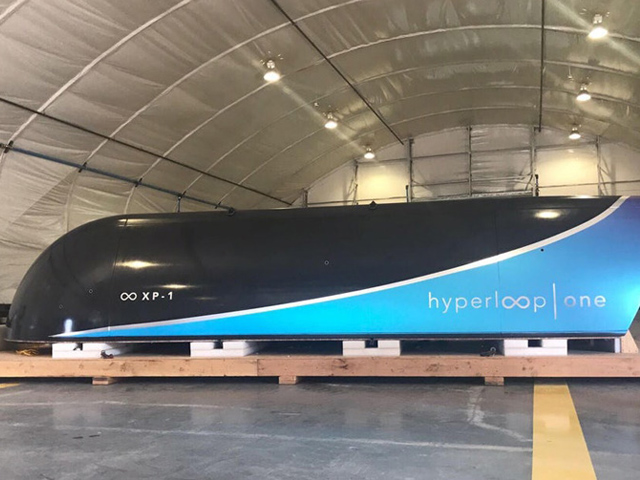

The Californian-company has also unveiled a prototype of the passenger and cargo pod that will travel through its tubes. Made from structural aluminium and carbon fibre, it measures 8.5-meters-long and will demonstrate travelling along the track as the company moves into its next phase of testing, which will also include running the Hyperloop at target speeds of 400 km per hour.

Hyperloop One Successful Full-Scale Test

“Hyperloop One has accomplished what no one has done before by successfully testing the first full-scale Hyperloop system,” comments Shervin Pishevar. “By achieving full vacuum, we essentially invented our own sky in a tube, as if you’re flying at 200,000 feet in the air. For the first time in over 100 years, a new mode of transportation has been introduced. Hyperloop is real, and it’s here now.”

All images © Hyperloop
