LEADING THE WAY
5 November 2012
ACO has supplied a variety of products, including access covers, cable pits and grated trench drains, to highways and motorways worldwide for over 30 years.
ACO has supplied a variety of products, including access covers, cable pits and grated trench drains, to highways and motorways worldwide for over 30 years. Drainage systems need to work efficiently to ensure surface water is removed quickly and that accidents caused by aquaplaning do not occur.
ACO Infrastructure is the market leading brand for trench drainage in transportation infrastructure applications, namely highways and motorways; urban roads, airport pavements, container ports, industrial parks, bus and truck stops; distribution centres; and streetscapes – just to name a few!
The systems consist of factory-manufactured channel units made from corrosion-resistant, durable materials that withstand even the most challenging environments.
ACO Infrastructure comprises a number of systems and comes complete with either non-removable or removable lockable grates.

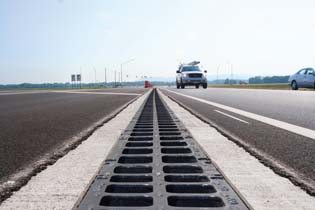

TraffikDrain is a heavy duty modular trench drain made from polymer concrete. Each channel unit has a cast-in ductile iron wearing edge rail which provides support for trafficable wheel loads up to 13 tonnes. There is a choice of two grate types: the bolted HiFlo grate, which ensures high water intake, and the Heelsafe grate, allowing for safe pedestrian passage.

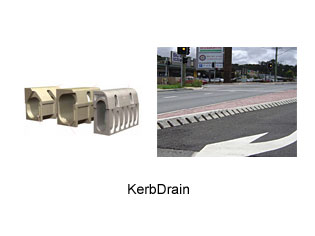

KerbDrain is a one piece heavy duty modular trench drain made from polymer concrete, comprising an integrally cast channel and batter with inlets for continuous drainage. The underlying channel then transfers captured flow to the stormwater system, often eliminating the need for multiple pits. Both mountable and non-mountable batter profiles are available.

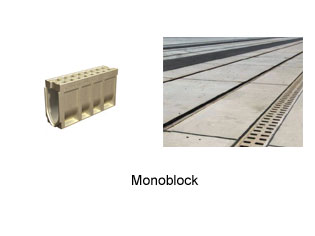

Monoblock is a one piece heavy duty modular trench drain made from polymer concrete for heavy duty areas in fast moving traffic. Its monolithic construction removes the risk of components vibrating loose, allowing it to be suitable in applications where drainage is positioned within the flow of traffic.

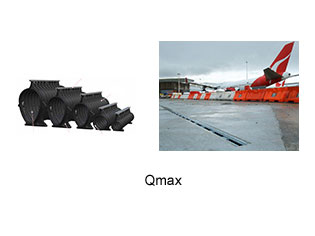

Qmax is a heavy duty slot drainage system made from lightweight, medium duty polyethylene (MDPE). A water tight seal is provided by a push fit connection between each 2 metre long unit. A number of sizes are available to cater for the drainage of small urban streetscapes up to large expansive tarmacs.
TECHNICAL SUPPORT FOR ACO INFRASTRUCTURE
ACO’s Technical Services Department will provide assistance on all aspects of trench drainage. Services include:
1. Trench hydraulic performance
2. Grate hydraulic performance
3. Run layout and scheduling services
4. Ponding analysis
5. Chemical resistance
6. Loading advice to choose correct trench drain system
ACO Polycrete Pty Ltd
135 Old Bathurst Road, Emu Plains NSW 2750
Ph: 02 4747 4000
Website: www.acoaus.com.au
